UI-5640SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 25.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/3"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5640SE-C-HQ_Rev_2_1.pdf
- 소비자가
- 별도문의

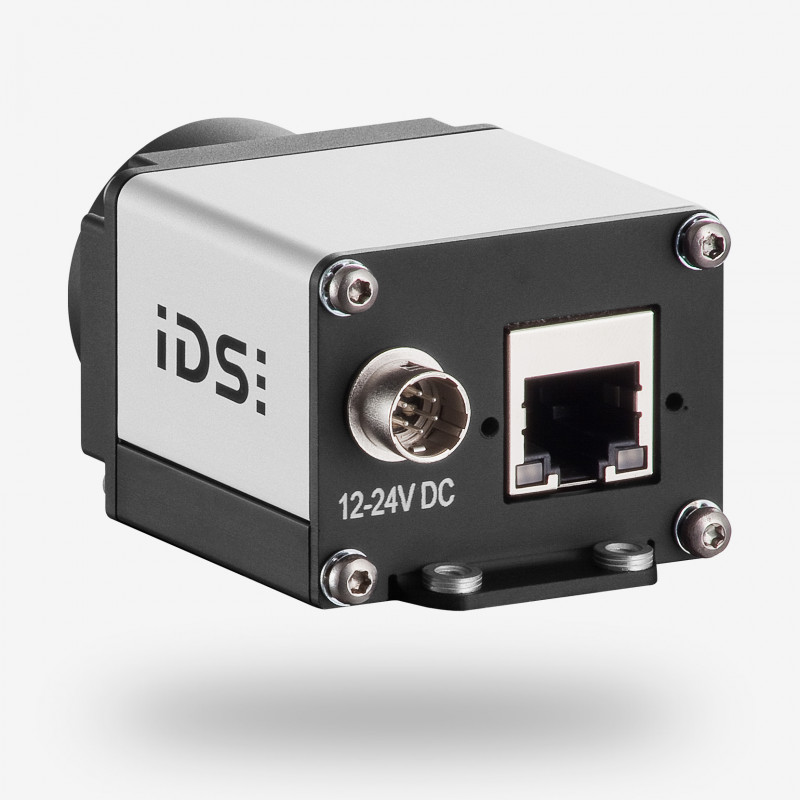

uEye SE
Ethernet 1.0 Gbps, 1/3", ON Semiconductor, 1.31 MPix, CMOS, 25.0 fps, MT9M131, 1280 x 1024
The UI-5640SE with the 1/3" 1.3 megapixel CMOS sensor (MT9M131STC) from ON Semiconductor delivers a resolution of 1280 x 1024 pixels at 25 frames per second.
A higher frame rate can be achieved using the subsampling mode. The large pixels create a particularly noise-free image.
| Item number |
|
|---|---|
| Name | UI-5640SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 25.0 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 4.608 mm x 3.686 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/3" |
| Resolution | 1.31 MPix |
| Pixel size | 3.60 μm |
| IP code | IP30 |
| Product Life Cycle | Discontinued |
