UI-5140CP Rev. 2
- Camera family
- CP
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 88.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/2"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5140CP-C-HQ_Rev_2.pdf
- Data sheet 2
- UI-5140CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의
uEye CP
Ethernet 1.0 Gbps, 1/2", ON Semiconductor, 1.31 MPix, CMOS, 88.0 fps, PYTHON 1300, 1280 x 1024

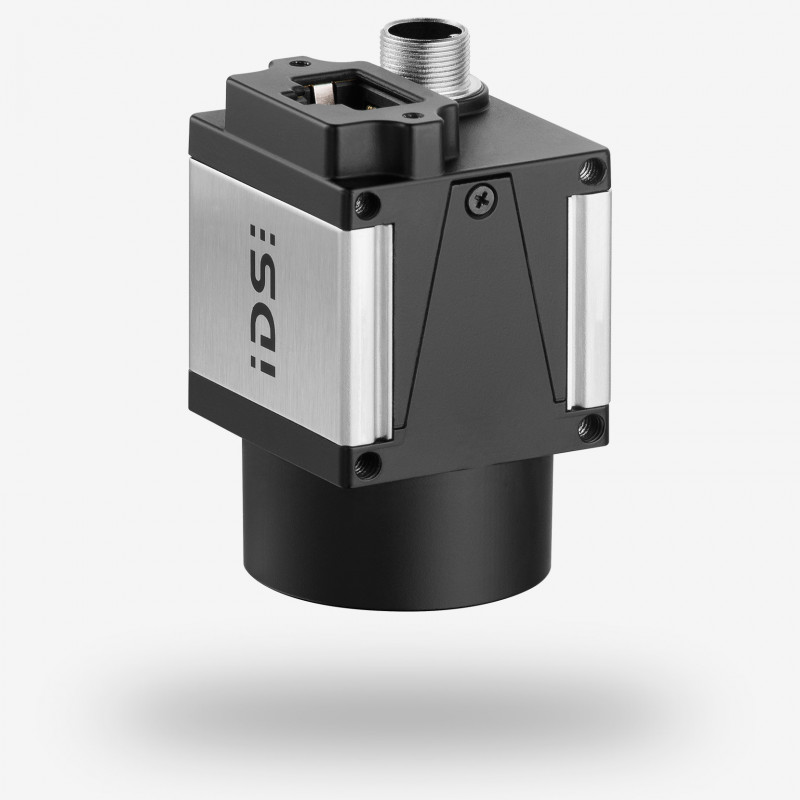

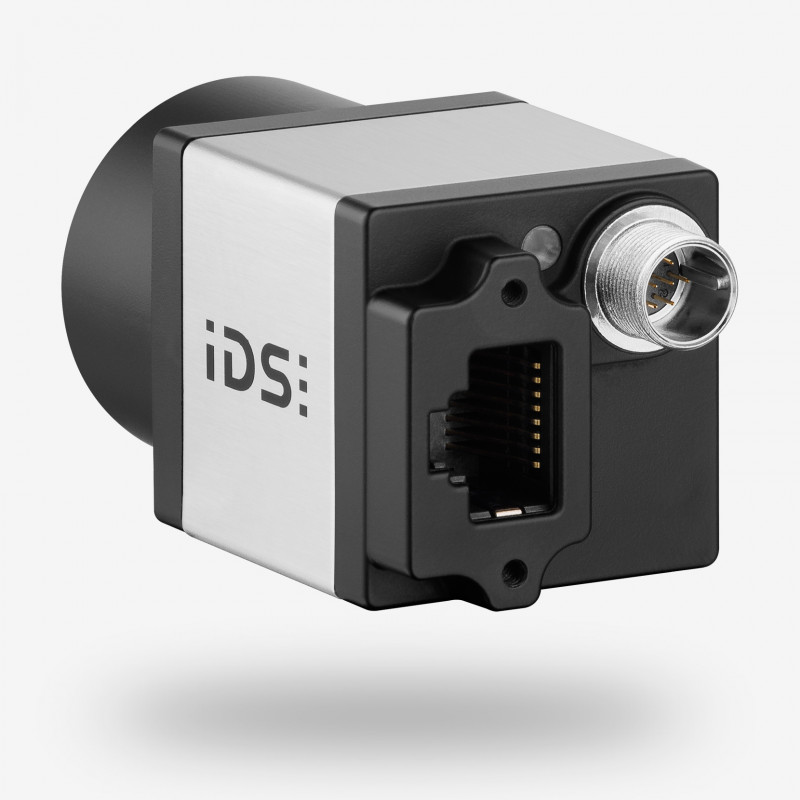

The UI-5140CP Rev. 2 GigE industrial camera with the fast 1.31 megapixel global shutter PYTHON 1300 sensor from ON Semiconductor is the ideal choice for capturing moving objects in industrial applications. The sensor's large, light-sensitive pixels in conjunction with the FPN correction feature implemented by IDS produces excellent, stripe-free images.
Additional functions such as eight times multi AOI, IDS line scan mode, or HDR mode with knee points make the GigE camera a versatile machine vision camera. The camera's frame rate can also be increased, thanks to the horizontal and vertical read-out feature.
| Item number |
|
|---|---|
| Name | UI-5140CP Rev. 2 |
| Camera family | CP |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 88.0 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 6.144 mm x 4.915 mm |
| Shutter | Global Shutter |
| Optical class | 1/2" |
| Resolution | 1.31 MPix |
| Pixel size | 4.80 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
