UI-5130FA
- Camera family
- FA
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 205 fps
- Shutter
- Global Shutter
- Optical class
- 1/3.6"
- Resolution
- 0.48 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5130FA-C-HQ.pdf
- Data sheet 2
- UI-5130FA-M-GL.pdf
- 소비자가
- 별도문의
uEye FA
Ethernet 1.0 Gbps, 1/3.6", ON Semiconductor, 0.48 MPix, CMOS, 205.0 fps, PYTHON 500, 800 x 600

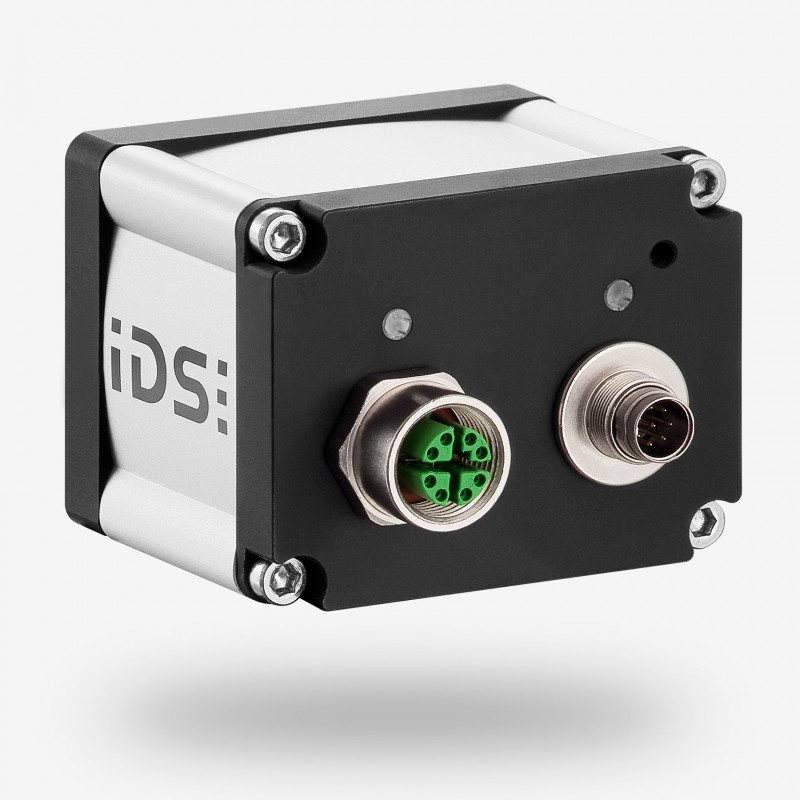

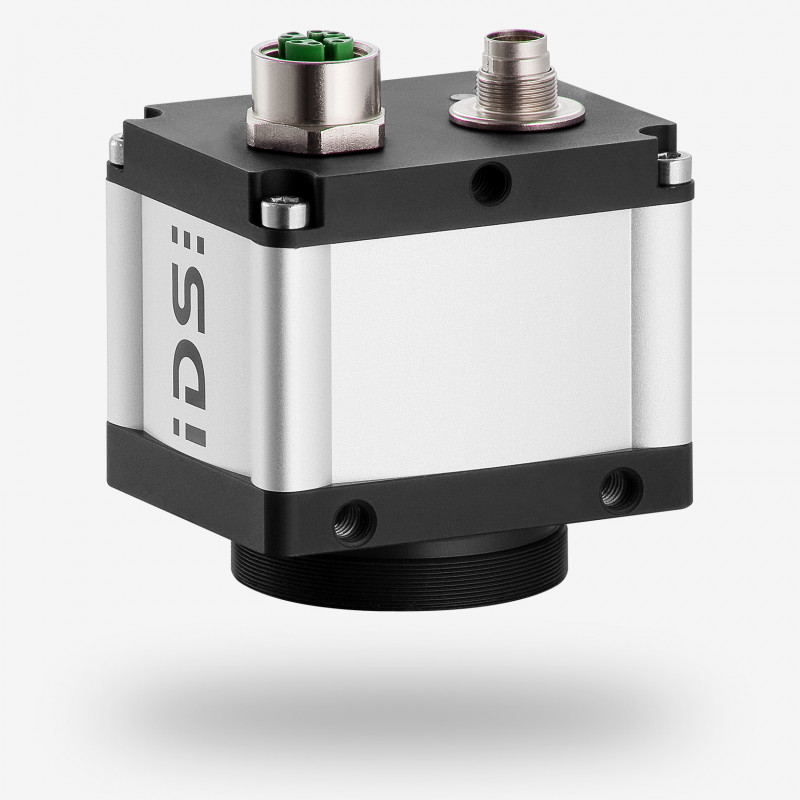

The UI-5130FA GigE industrial camera with protection code IP65/67 and with the integrated fast SVGA global shutter PYTHON 500 sensor from ON Semiconductor is available as a monochrome and color version. It is designed entirely with speed in mind: Thanks to its horizontal and vertical read-out feature, the image reading rate can be further increased.
The UI-5130FA is perfectly suited to classic machine vision and inspection tasks. The FPN (Fixed Pattern Noise) correction feature implemented via the IDS software provides an improved, stripe-free image quality.
| Item number |
|
|---|---|
| Name | UI-5130FA |
| Camera family | FA |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 205 fps |
| Resolution (h x v) | 800 x 600 |
| Optical Area | 3.840 mm x 2.880 mm |
| Shutter | Global Shutter |
| Optical class | 1/3.6" |
| Resolution | 0.48 MPix |
| Pixel size | 4.80 μm |
| IP code | IP65/67 |
| Product Life Cycle | Series |
