UI-5130CP Rev. 2
- Camera family
- CP
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 205 fps
- Shutter
- Global Shutter
- Optical class
- 1/3.6"
- Resolution
- 0.48 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5130CP-C-HQ_Rev_2.pdf
- Data sheet 2
- UI-5130CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의
uEye CP
Ethernet 1.0 Gbps, 1/3.6", ON Semiconductor, 0.48 MPix, CMOS, 205.0 fps, PYTHON 500, 800 x 600

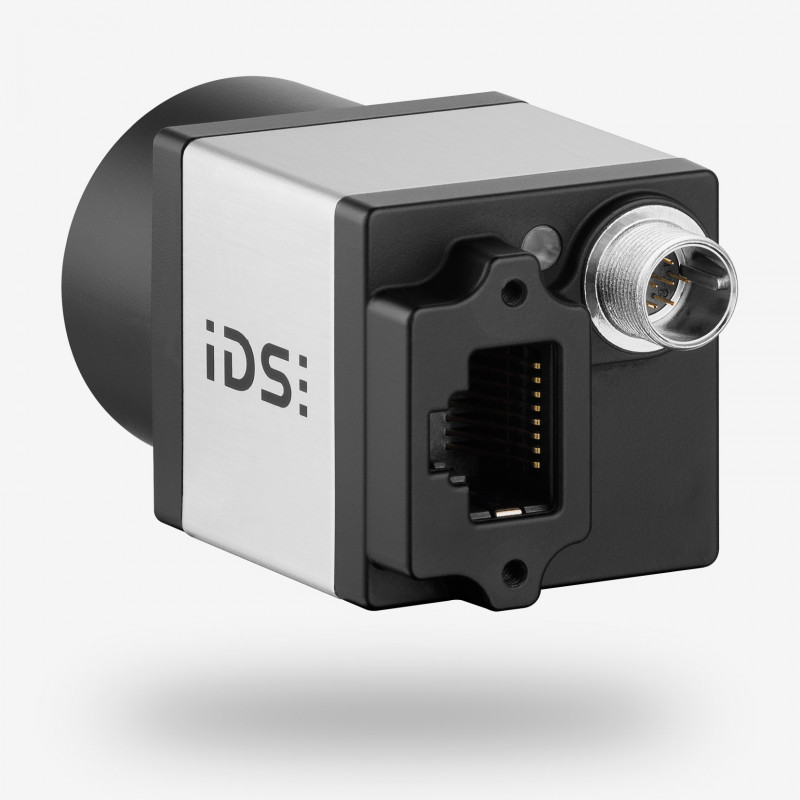

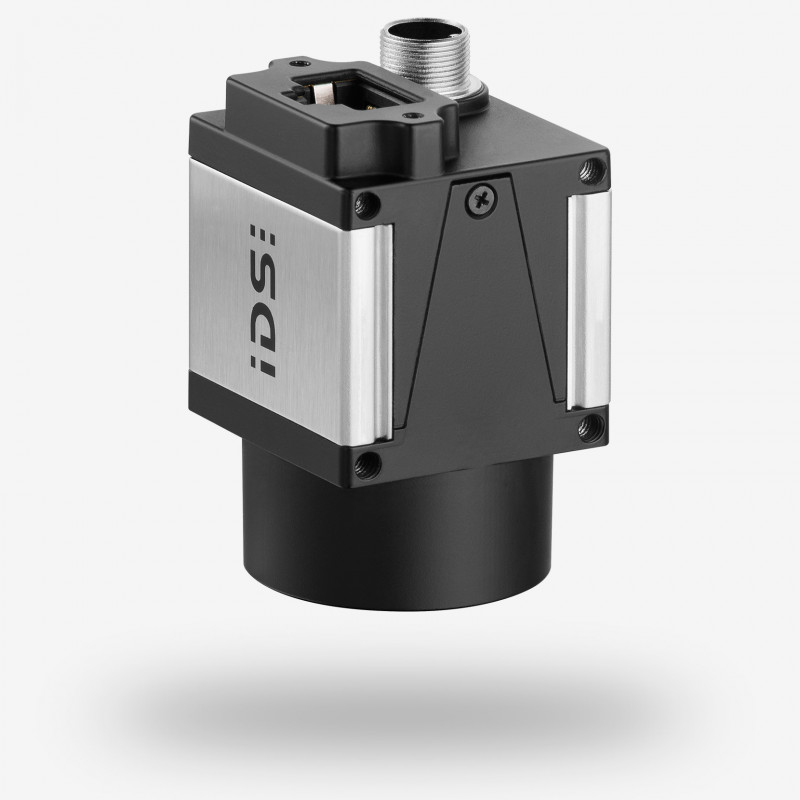

The UI-5130CP Rev. 2 GigE industrial camera with the fast SVGA global shutter PYTHON 500 sensor from ON Semiconductor is available as a monochrome and color version. It is designed entirely with speed in mind: Thanks to its horizontal and vertical read-out feature, the image reading rate can be further increased. The UI-5130CP Rev. 2 is perfectly suited to classic machine vision and inspection tasks.
The FPN (Fixed Pattern Noise) correction feature implemented via the IDS software provides an improved, stripe-free image quality.
This camera model will be supported beginning with IDS Software Suite 4.90.
| Item number |
|
|---|---|
| Name | UI-5130CP Rev. 2 |
| Camera family | CP |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 205 fps |
| Resolution (h x v) | 800 x 600 |
| Optical Area | 3.840 mm x 2.880 mm |
| Shutter | Global Shutter |
| Optical class | 1/3.6" |
| Resolution | 0.48 MPix |
| Pixel size | 4.80 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
