UI-3290SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 33.0 fps
- Shutter
- Global Shutter
- Optical class
- 1"
- Resolution
- 8.92 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3290SE-C-HQ.pdf
- Data sheet 2
- UI-3290SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
USB 3 5.0 Gbps, 1", Sony, 8.92 MPix, CMOS, 33.0 fps, IMX267, 4104 x 2174

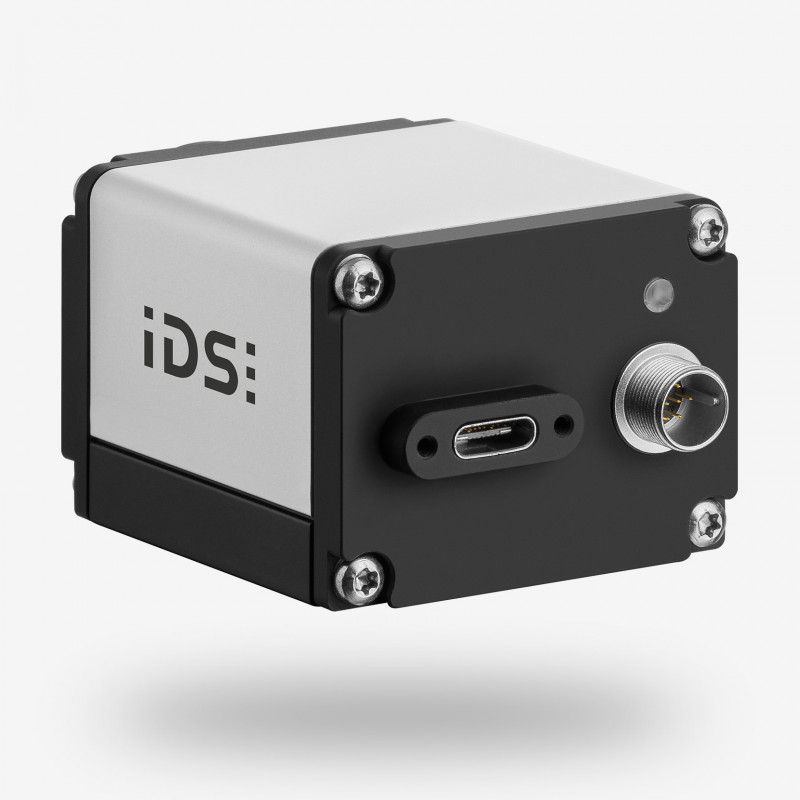

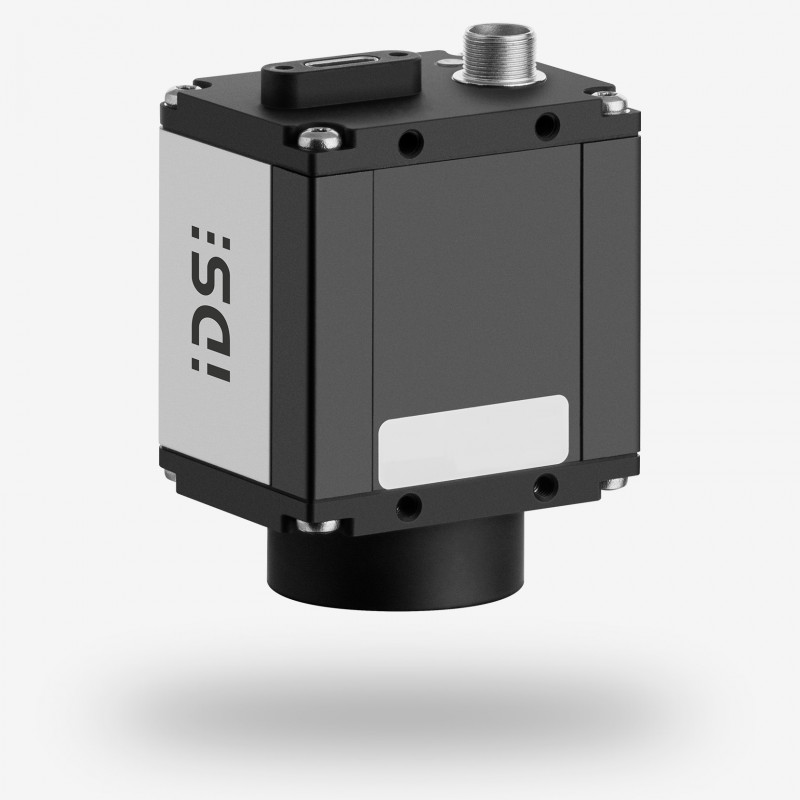

The USB 3 UI-3290SE industrial camera with the Sony IMX267 8.9 megapixel CMOS sensor is the inexpensive alternative to our UI-3090SE. It offers the same image quality in unrivaled CCD quality at a slightly slower frame rate (33 fps), and is therefore the right choice for any application in which the cycle speed is not the decisive criterion.
Its high sensitivity in the near infrared range renders a special NIR variant obsolete.
The UI-3290SE is available in both monochrome and colour variants.
| Item number |
|
|---|---|
| Name | UI-3290SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 33.0 fps |
| Resolution (h x v) | 4104 x 2174 |
| Optical Area | 14.158 mm x 7.500 mm |
| Shutter | Global Shutter |
| Optical class | 1" |
| Resolution | 8.92 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
