UI-3200SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 24.0 fps
- Shutter
- Global Shutter
- Optical class
- 1.1"
- Resolution
- 12.34 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3200SE-C-HQ.pdf
- Data sheet 2
- UI-3200SE-M-GL.pdf
- 소비자가
- 별도문의

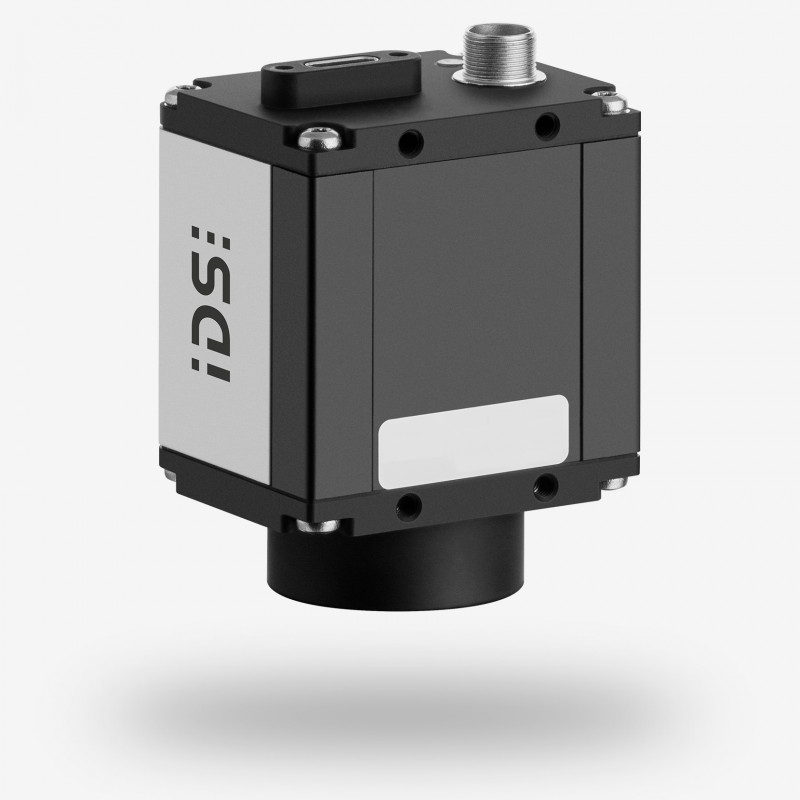

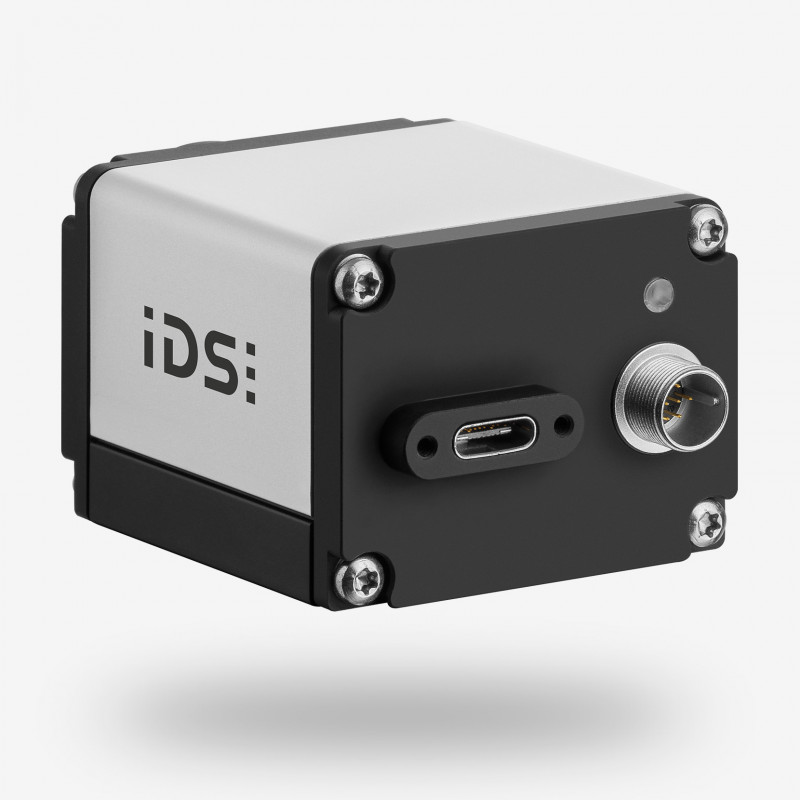

uEye SE
USB 3 5.0 Gbps, 1.1", Sony, 12.34 MPix, CMOS, 24.0 fps, IMX304, 4104 x 3006
The USB 3 UI-3200SE industrial camera is the cost-optimized, frame-rate reduced variant of the UI-3000SE, and with the integrated Sony IMX304 with its massive 12.3 megapixels performs every bit as well in terms of image quality: high resolution, excellent light sensitivity and outstanding dynamic range. Its technical performance characteristics are unequaled.
The most popular application fields for the UI-3200SE are traffic surveillance and medical or measuring technology.
The UI-3200SE is available in both monochrome and colour variants.
Item number |
|
---|---|
Name | UI-3200SE |
Camera family | SE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 24.0 fps |
Resolution (h x v) | 4104 x 3006 |
Optical Area | 14.158 mm x 10.370 mm |
Shutter | Global Shutter |
Optical class | 1.1" |
Resolution | 12.34 MPix |
Pixel size | 3.45 μm |
IP code | IP30 |
Product Life Cycle | Series |
