UI-3130CP Rev. 2
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 396 fps
- Shutter
- Global Shutter
- Optical class
- 1/3.6"
- Resolution
- 0.48 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3130CP-C-HQ_Rev_2.pdf
- Data sheet 2
- UI-3130CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의
uEye CP
USB 3 5.0 Gbps, 1/3.6", ON Semiconductor, 0.48 MPix, CMOS, 396.0 fps, PYTHON 500, 800 x 600

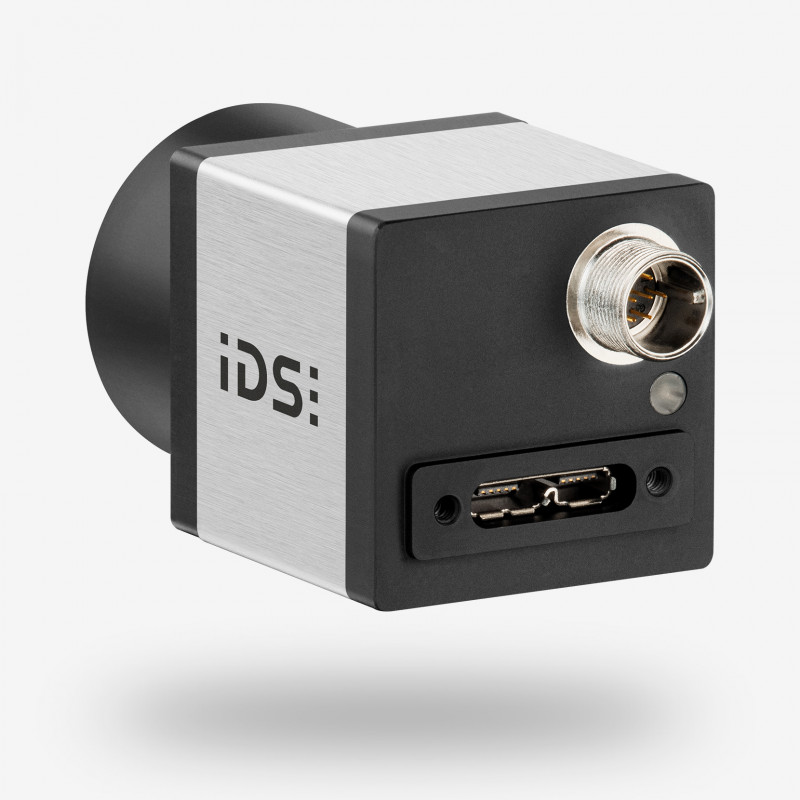

The USB 3 camera UI-3130CP with 1/3.6" global shutter CMOS sensor PYTHON 500 by ON Semiconductor is fully designed to provide high-speed: using the unique AOI feature (horizontal and vertical read-out), the industrial camera reaches more than 1,000 fps.
Therefore, the CMOS camera (0.5 MP: 800 x 600 pixels, up to 396 fps) is suitable especially for classical machine vision applications, for slow motion or high-speed tracking applications. Available as monochrome or colour version.
This camera model will be supported beginning with IDS Software Suite 4.80.
| Item number |
|
|---|---|
| Name | UI-3130CP Rev. 2 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 396 fps |
| Resolution (h x v) | 800 x 600 |
| Optical Area | 3.840 mm x 2.880 mm |
| Shutter | Global Shutter |
| Optical class | 1/3.6" |
| Resolution | 0.48 MPix |
| Pixel size | 4.80 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
