U3-3040SE

Camera family
SE
Interface
USB3
Sensor type
CMOS
Frame / Line rate
251 fps
Shutter
Global Shutter
Optical class
1/3"
Resolution
1.58 MPix
Mono / Color
Mono / Color
Data sheet 1
U3-3040SE-C-HQ.pdf
Data sheet 2
U3-3040SE-M-GL.pdf
소비자가
별도문의

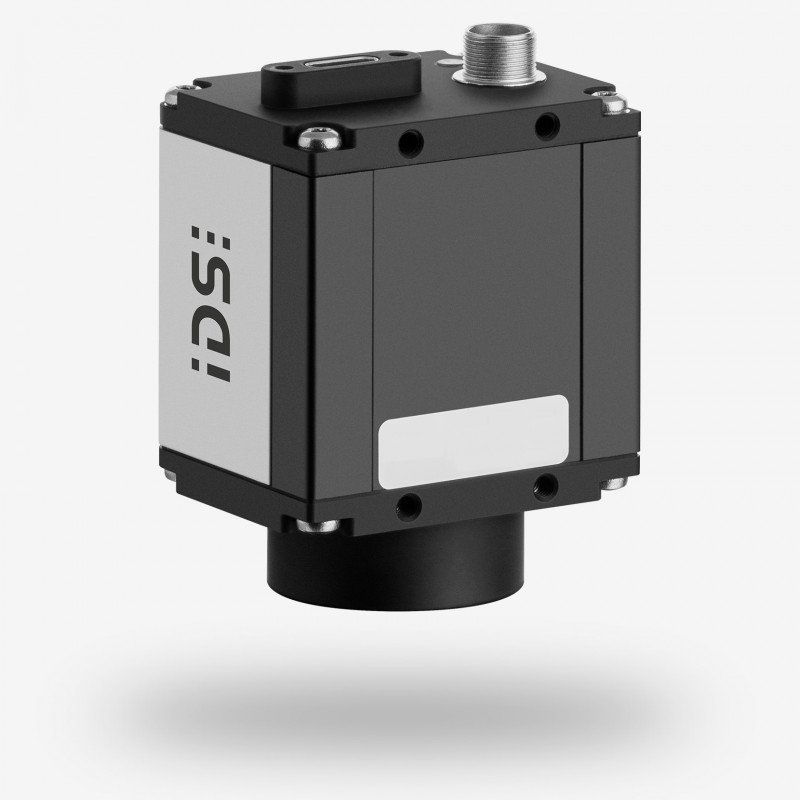

uEye SE USB 3 5.0 Gbps, 1/3", Sony, 1.58 MPix, CMOS, 251.0 fps, IMX273, 1456 x 1088

?For excellent image quality even in low light scenarios or when the camera should take pictures of fast-moving objects: the cost-effective global shutter CMOS sensor IMX273 from the Sony Pregius series excels through its image quality, high sensitivity and wide dynamic range. With a resolution of 1.58 MPix (1456 x 1088 px) at 3.45 μm pixels, it delivers impressive 251 fps when used with the USB3 Vision industrial camera U3-3040SE. This makes this camera ideal for cost-sensitive and demanding machine vision applications such as surface inspections, detailed image analysis in medical technology or traffic applications.


Special functions such as long-time exposure up to 30.0 s or the linescan mode for using the industrial camera as a line scan camera also extend the range of possible applications.


The U3-3040SE is available in both monochrome and colour variants.


This camera model is supported by IDS Vision firmware 2.0 and higher.




Item number
  • U3-3040SE-M-GL: AB02807
  • U3-3040SE-C-HQ: AB02806
Name U3-3040SE
Camera family SE
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 251 fps
Resolution (h x v) 1456 x 1088
Optical Area 5.032 mm x 3.754 mm
Shutter Global Shutter
Optical class 1/3"
Resolution 1.58 MPix
Pixel size 3.45 μm
IP code IP30
Product Life Cycle Series
